Building Your First Observability Stack with Open‑Source Tools

Apr 27, 2025

Goal: Spin up Prometheus+Alertmanager, Loki+Promtail, Jaeger, and Grafana with a single docker‑compose.yml, then watch a tiny Java HTTP service emit metrics, logs, and traces—all in less than an hour.

Why this post?

Building Your First Observability Stack with Open‑Source Tools

You keep hearing that “observability ≠ monitoring” and that you need metrics, logs, and traces working together. But SaaS bills and steep learning curves can be buzz‑kills. This guide is a hands‑on shortcut: everything runs locally in Docker, so you can poke around, break things, and learn risk‑free.

What is Observability? – Metrics, Logs, and Traces Demystified

Jigar Bhatt

April 13, 2025

Read full story

Prerequisites

Docker & docker‑compose installed
Basic docker compose up / docker compose down familiarity
JDK 21+ and Maven

1 – Scaffold a Tiny Java Service

Create a folder tiny-app/

mkdir tiny-app && cd tiny-app

1.1 `pom.xml`

This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters

Show hidden characters

	<?xml version="1.0" encoding="UTF-8"?>
	<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>how.observability</groupId>
	<artifactId>tiny-app</artifactId>
	<version>1.0-SNAPSHOT</version>

	<properties>
	<maven.compiler.source>21</maven.compiler.source>
	<maven.compiler.target>21</maven.compiler.target>
	<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	<micrometer.version>1.14.6</micrometer.version>
	<javalin.version>6.6.0</javalin.version>
	<slf4j-simple.version>2.0.17</slf4j-simple.version>
	<maven-shade-plugin.version>3.6.0</maven-shade-plugin.version>
	</properties>

	<dependencies>
	<!-- Minimal embedded HTTP server -->
	<dependency>
	<groupId>io.javalin</groupId>
	<artifactId>javalin</artifactId>
	<version>${javalin.version}</version>
	</dependency>

	<!-- Micrometer core + Prometheus registry -->
	<dependency>
	<groupId>io.micrometer</groupId>
	<artifactId>micrometer-core</artifactId>
	<version>${micrometer.version}</version>
	</dependency>
	<dependency>
	<groupId>io.micrometer</groupId>
	<artifactId>micrometer-registry-prometheus</artifactId>
	<version>${micrometer.version}</version>
	</dependency>

	<!-- SLF4J for logs -->
	<dependency>
	<groupId>org.slf4j</groupId>
	<artifactId>slf4j-simple</artifactId>
	<version>${slf4j-simple.version}</version>
	</dependency>
	</dependencies>

	<build>
	<plugins>
	<plugin>
	<groupId>org.apache.maven.plugins</groupId>
	<artifactId>maven-shade-plugin</artifactId>
	<version>${maven-shade-plugin.version}</version>
	<executions>
	<execution>
	<phase>package</phase>
	<goals>
	<goal>shade</goal>
	</goals>
	<configuration>
	<transformers>
	<transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
	<mainClass>how.observability.TinyApp</mainClass>
	</transformer>
	</transformers>
	</configuration>
	</execution>
	</executions>
	</plugin>
	</plugins>
	</build>
	</project>

view raw pom.xml hosted with ❤ by GitHub

1.2 `TinyApp.java`

Show hidden characters

	package how.observability;

	import io.javalin.Javalin;
	import io.micrometer.core.instrument.Counter;
	import io.micrometer.core.instrument.Metrics;
	import io.micrometer.prometheusmetrics.PrometheusConfig;
	import io.micrometer.prometheusmetrics.PrometheusMeterRegistry;
	import org.slf4j.Logger;
	import org.slf4j.LoggerFactory;

	public class TinyApp {
	public static void main(String[] args) {
	Logger log = LoggerFactory.getLogger(TinyApp.class);

	PrometheusMeterRegistry prometheus = new PrometheusMeterRegistry(PrometheusConfig.DEFAULT);
	Metrics.addRegistry(prometheus);

	Counter hits = Counter.builder("tiny_hits_total")
	.description("Total hello hits")
	.register(prometheus);

	Javalin app = Javalin.create()
	.get("/hello", ctx -> {
	hits.increment();
	log.info("Handled /hello for {}", ctx.ip());
	ctx.result("Hello " + ctx.ip());
	})
	.get("/metrics", ctx -> ctx.result(prometheus.scrape()))
	.start(8080);

	log.info("Tiny app started at http://localhost:8080");
	}
	}

view raw TinyApp.java hosted with ❤ by GitHub

1.3 `Dockerfile`

Show hidden characters

	FROM maven:3.9.9-eclipse-temurin-21 AS build
	WORKDIR /build
	COPY pom.xml .
	RUN mvn -q dependency:go-offline
	COPY src ./src
	RUN mvn -q package -DskipTests

	FROM eclipse-temurin:21-jre
	WORKDIR /app
	COPY --from=build /build/target/tiny-app-1.0-SNAPSHOT.jar app.jar
	# Grab the OpenTelemetry Java agent
	ADD https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/download/v2.15.0/opentelemetry-javaagent.jar /otel.jar
	ENV OTEL_SERVICE_NAME=tiny-app
	ENV OTEL_TRACES_EXPORTER=otlp
	ENV OTEL_EXPORTER_OTLP_ENDPOINT=http://jaeger:4318
	ENV OTEL_METRICS_EXPORTER=none
	ENV OTEL_LOGS_EXPORTER=none
	EXPOSE 8080
	ENTRYPOINT ["java","-javaagent:/otel.jar","-jar","app.jar"]

view raw Dockerfile hosted with ❤ by GitHub

Build it:

docker build -t tiny-app:latest .

2 – Prometheus (+ Alertmanager) Config

2.1 `prometheus.yaml`

Show hidden characters

	global:
	scrape_interval: 15s

	scrape_configs:
	- job_name: 'tiny-app'
	metrics_path: /metrics
	static_configs:
	- targets: ['tiny-app:8080']

	alerting:
	alertmanagers:
	- static_configs:
	- targets: ['alertmanager:9093']

	rule_files:
	- alert_rules.yaml

view raw prometheus.yaml hosted with ❤ by GitHub

2.2 `alert-rules.yaml`

Show hidden characters

	groups:
	- name: tiny.rules
	rules:
	- alert: HighRequestRate
	expr: rate(tiny_hits_total[1m]) > 5
	for: 1m
	labels:
	severity: warning
	annotations:
	summary: "High request rate on tiny-app"
	description: "Request rate >5 RPS for 1 min."

view raw alert-rules.yaml hosted with ❤ by GitHub

2.3 `alertmanager.yaml`

We’ll use a throw‑away “alert‑logger” container that simply prints POST bodies to stdout so you can observe alerts without email/SMS.

Show hidden characters

	route:
	receiver: 'log'
	receivers:
	- name: 'log'
	webhook_configs:
	- url: 'http://alert-logger:5678'

view raw alertmanager.yaml hosted with ❤ by GitHub

3 – Loki & Promtail Config

3.1 `loki.yaml`

Show hidden characters

	auth_enabled: false

	server:
	http_listen_port: 3100
	grpc_listen_port: 9096
	log_level: debug
	grpc_server_max_concurrent_streams: 1000

	common:
	instance_addr: 127.0.0.1
	path_prefix: /tmp/loki
	storage:
	filesystem:
	chunks_directory: /tmp/loki/chunks
	rules_directory: /tmp/loki/rules
	replication_factor: 1
	ring:
	kvstore:
	store: inmemory

	query_range:
	results_cache:
	cache:
	embedded_cache:
	enabled: true
	max_size_mb: 100

	limits_config:
	metric_aggregation_enabled: true

	schema_config:
	configs:
	- from: 2020-10-24
	store: tsdb
	object_store: filesystem
	schema: v13
	index:
	prefix: index_
	period: 24h

	pattern_ingester:
	enabled: true
	metric_aggregation:
	loki_address: localhost:3100

	ruler:
	alertmanager_url: http://alertmanager:9093

	frontend:
	encoding: protobuf

	analytics:
	reporting_enabled: false

view raw loki.yaml hosted with ❤ by GitHub

3.2 `promtail.yaml`

Show hidden characters

	server:
	http_listen_port: 9080
	grpc_listen_port: 0

	positions:
	filename: /tmp/positions.yaml

	clients:
	- url: http://loki:3100/loki/api/v1/push

	scrape_configs:
	- job_name: container_logs
	docker_sd_configs:
	- host: unix:///var/run/docker.sock
	refresh_interval: 5s
	relabel_configs:
	- source_labels: [ '__meta_docker_container_name' ]
	regex: '/(.*)'
	target_label: 'container'

view raw promtail.yaml hosted with ❤ by GitHub

4 – Docker Compose Config

Show hidden characters

	services:
	# -------------- Observability back‑end stack --------------
	prometheus:
	image: prom/prometheus:v3.3.0
	volumes:
	- ./prometheus.yaml:/etc/prometheus/prometheus.yaml
	- ./alert-rules.yaml:/etc/prometheus/alert_rules.yaml
	ports:
	- "9090:9090"
	command:
	- "--config.file=/etc/prometheus/prometheus.yaml"

	alertmanager:
	image: prom/alertmanager:v0.28.1
	volumes:
	- ./alertmanager.yaml:/etc/alertmanager/alertmanager.yml
	ports:
	- "9093:9093"

	loki:
	image: grafana/loki:3.5.0
	ports:
	- "3100:3100"
	volumes:
	- ./loki.yaml:/etc/loki/local-config.yaml
	command: -config.file=/etc/loki/local-config.yaml

	promtail:
	image: grafana/promtail:3.5.0
	volumes:
	- /var/run/docker.sock:/var/run/docker.sock
	- ./promtail.yaml:/etc/promtail/config.yaml
	- /var/lib/docker/containers:/var/log/containers:ro
	command: -config.file=/etc/promtail/config.yaml

	jaeger:
	image: jaegertracing/all-in-one:1.68.0
	environment:
	COLLECTOR_OTLP_ENABLED: "true"
	ports:
	- "16686:16686" # UI
	- "4318:4318" # OTLP HTTP

	grafana:
	image: grafana/grafana:11.6.1
	depends_on: [prometheus, loki, jaeger]
	ports:
	- "3000:3000"
	environment:
	GF_SECURITY_ADMIN_PASSWORD: "admin"
	volumes:
	- grafana-data:/var/lib/grafana

	# -------------- Tiny application --------------
	tiny-app:
	image: tiny-app:latest
	build:
	context: ./tiny-app
	depends_on: [jaeger]
	ports:
	- "8080:8080"
	labels:
	logging: "promtail"

	# -------------- Alert sink for Tiny stack --------------
	alert-logger:
	image: mendhak/http-https-echo:36
	environment:
	HTTP_PORT: 5678
	ports:
	- "5678:5678"

	volumes:
	grafana-data: {}

view raw docker-compose.yaml hosted with ❤ by GitHub

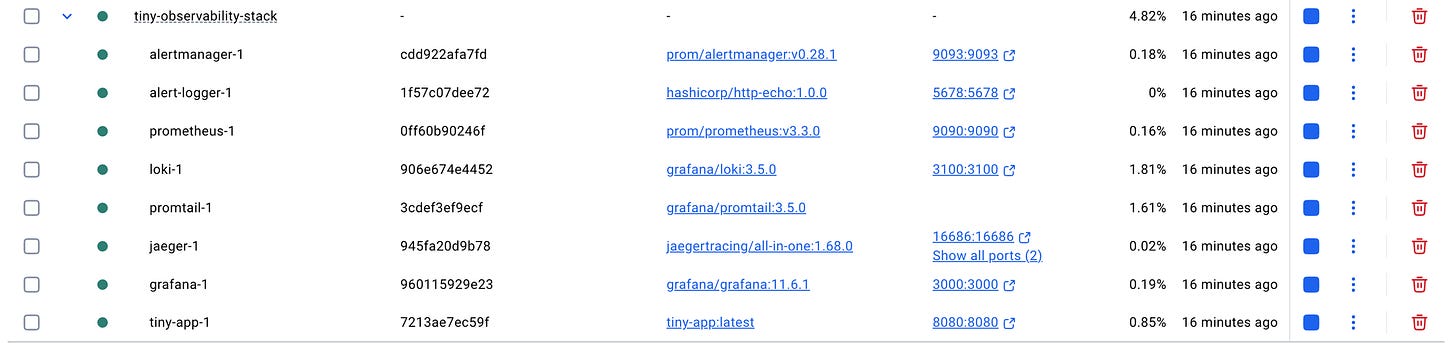

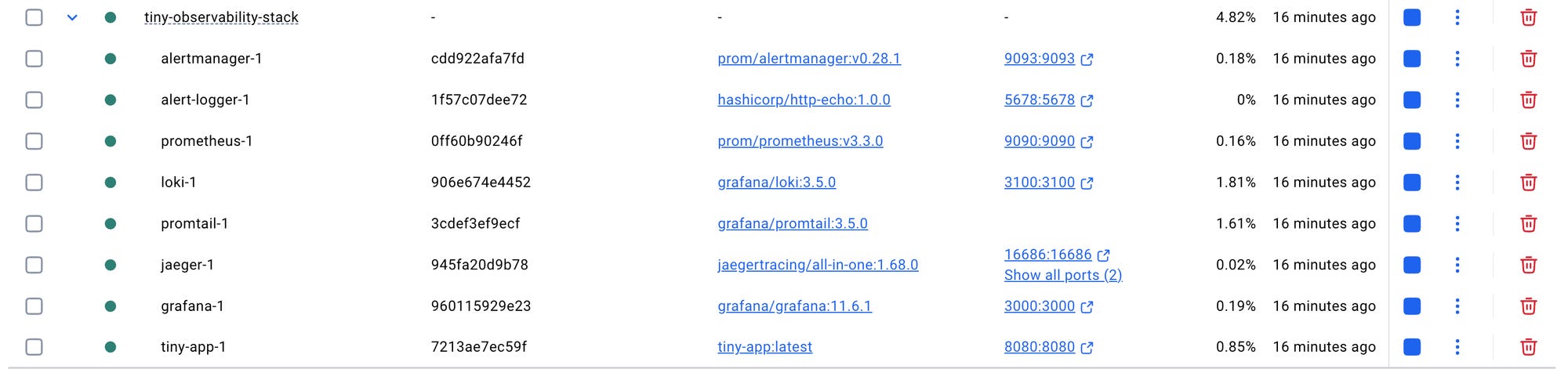

5 – Fire It Up!

docker compose up -d

Give it ~30 seconds. Hit the demo app:

curl http://localhost:8080/hello
ab -n 200 -c 20 http://localhost:8080/hello   # generate some load

You should see “Hello” responses and, in the container logs, Handled /hello … log lines (Promtail picks them up).

6 – Exploring the Data

6.1 Grafana Login

Browser → http://localhost:3000
User: admin Password: admin

Hit Connections → Data Sources → Add new data source and select each

Prometheus url → http://prometheus:9090
Loki url → http://loki:3100
Jaeger url → http://jaeger:16686

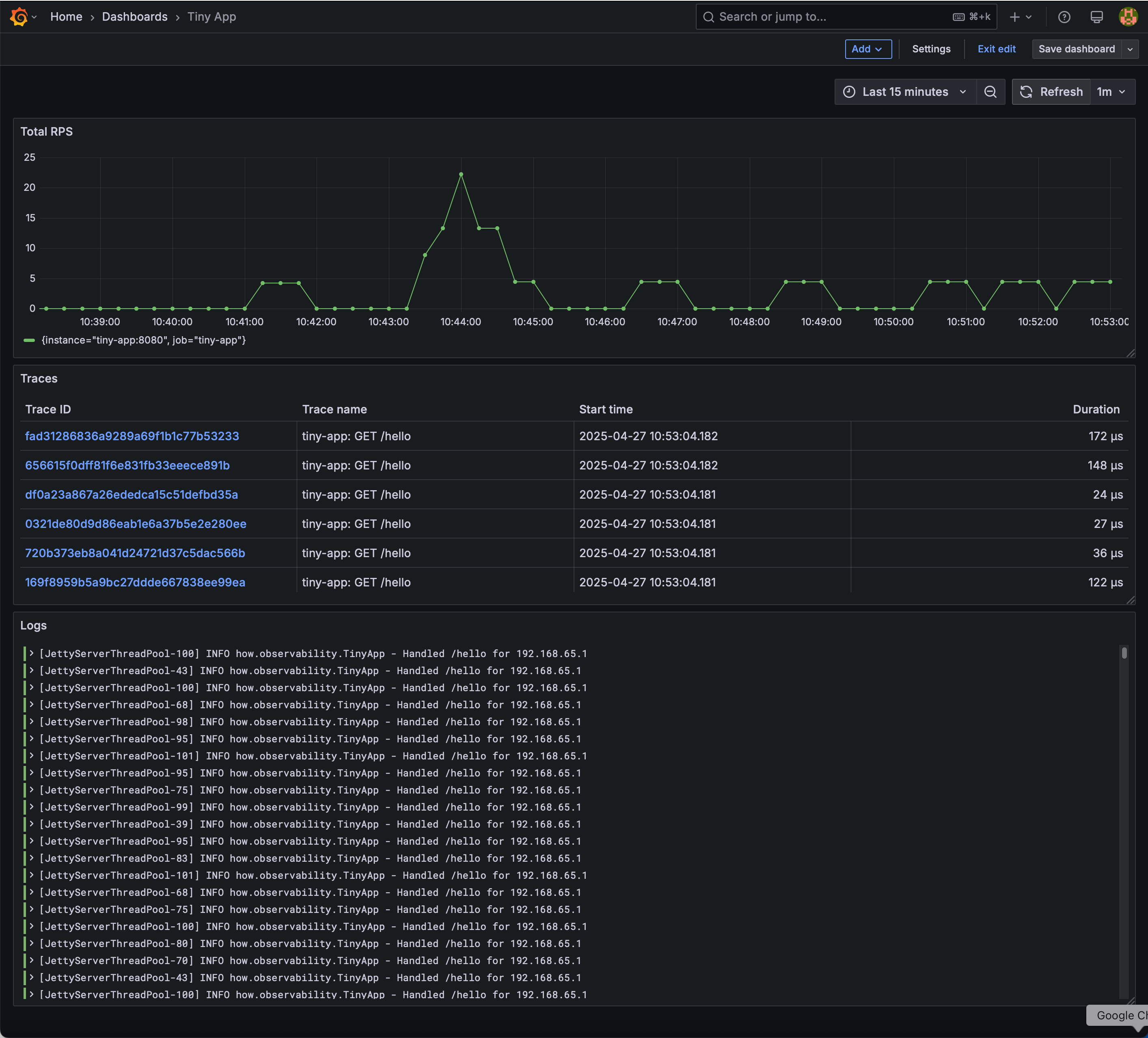

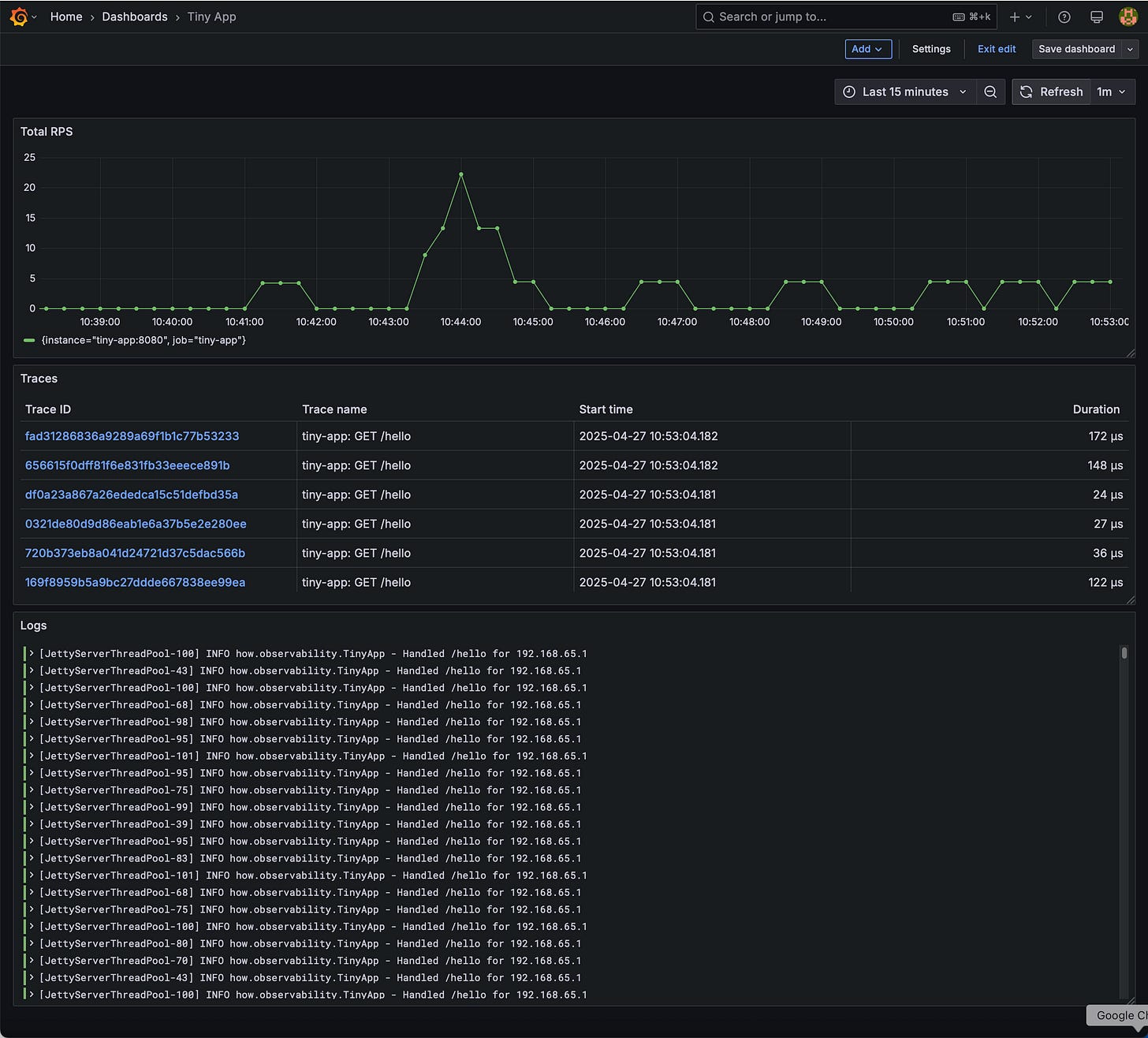

6.2 Quick Dashboards

Metrics panel: Choose the Prometheus data source with below query.

rate(tiny_hits_total[1m])

Logs panel: Choose the Loki data source with below query.

{service_name="tiny-observability-stack-tiny-app-1"}

Traces panel: Choose the Jaeger data source and click “Search” pick tiny-app.

6.3 Alert in Action

Keep hammering /hello (e.g., ab above). When rate(demo_hits_total) exceeds 5 RPS for > 1 minute, Prometheus fires HighRequestRate. Check:

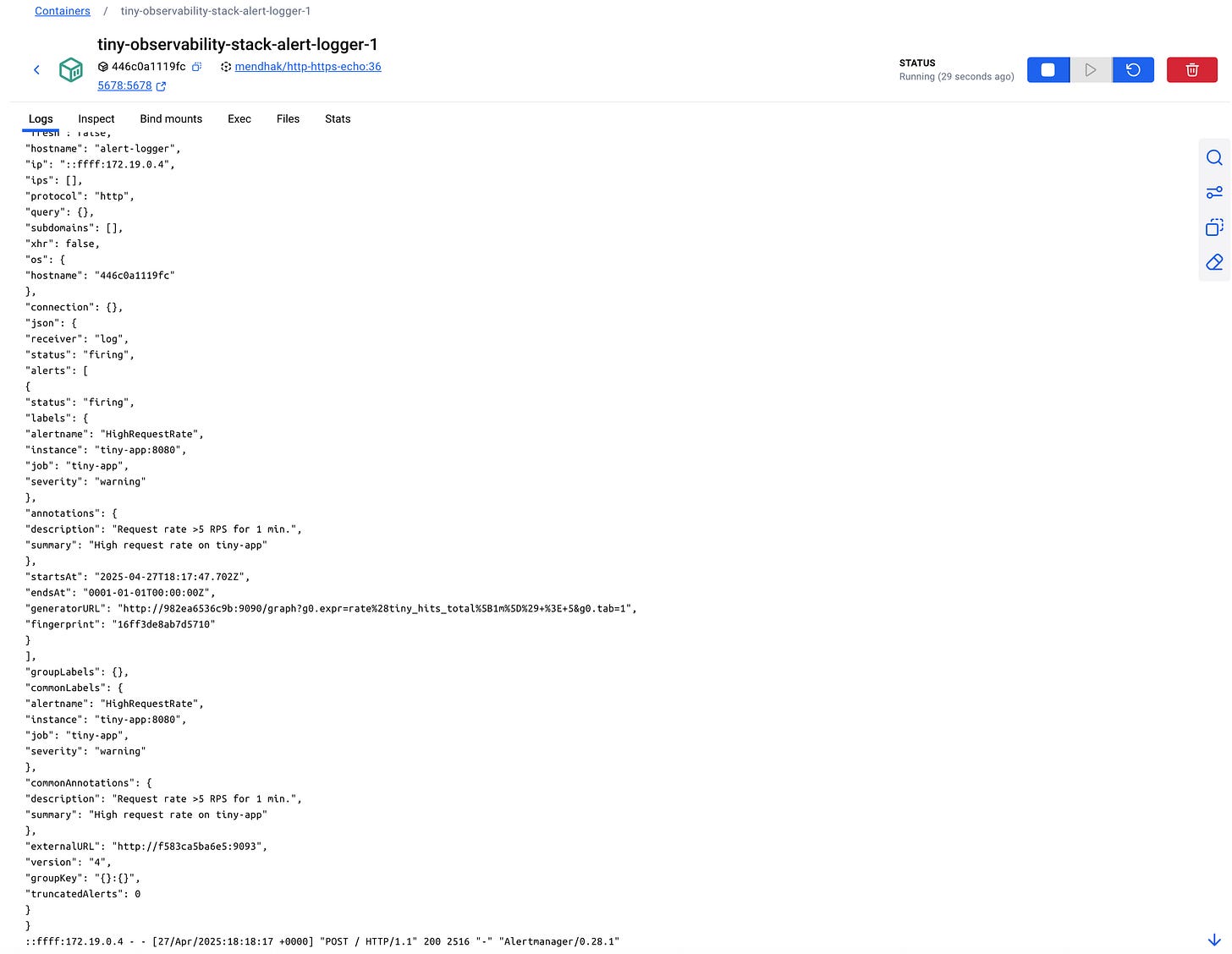

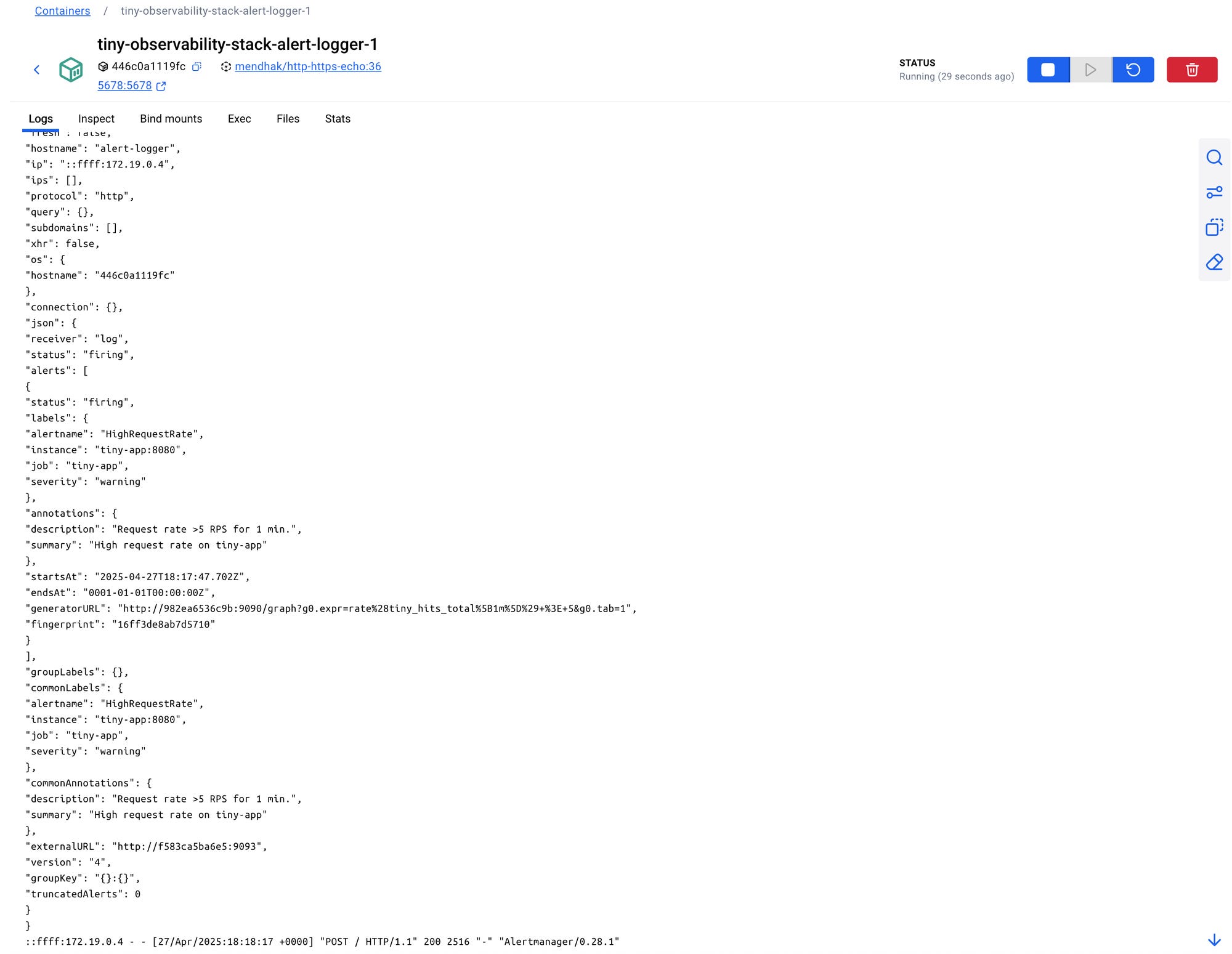

docker compose logs alert-logger

You should see a POST with JSON alert payload 👏.

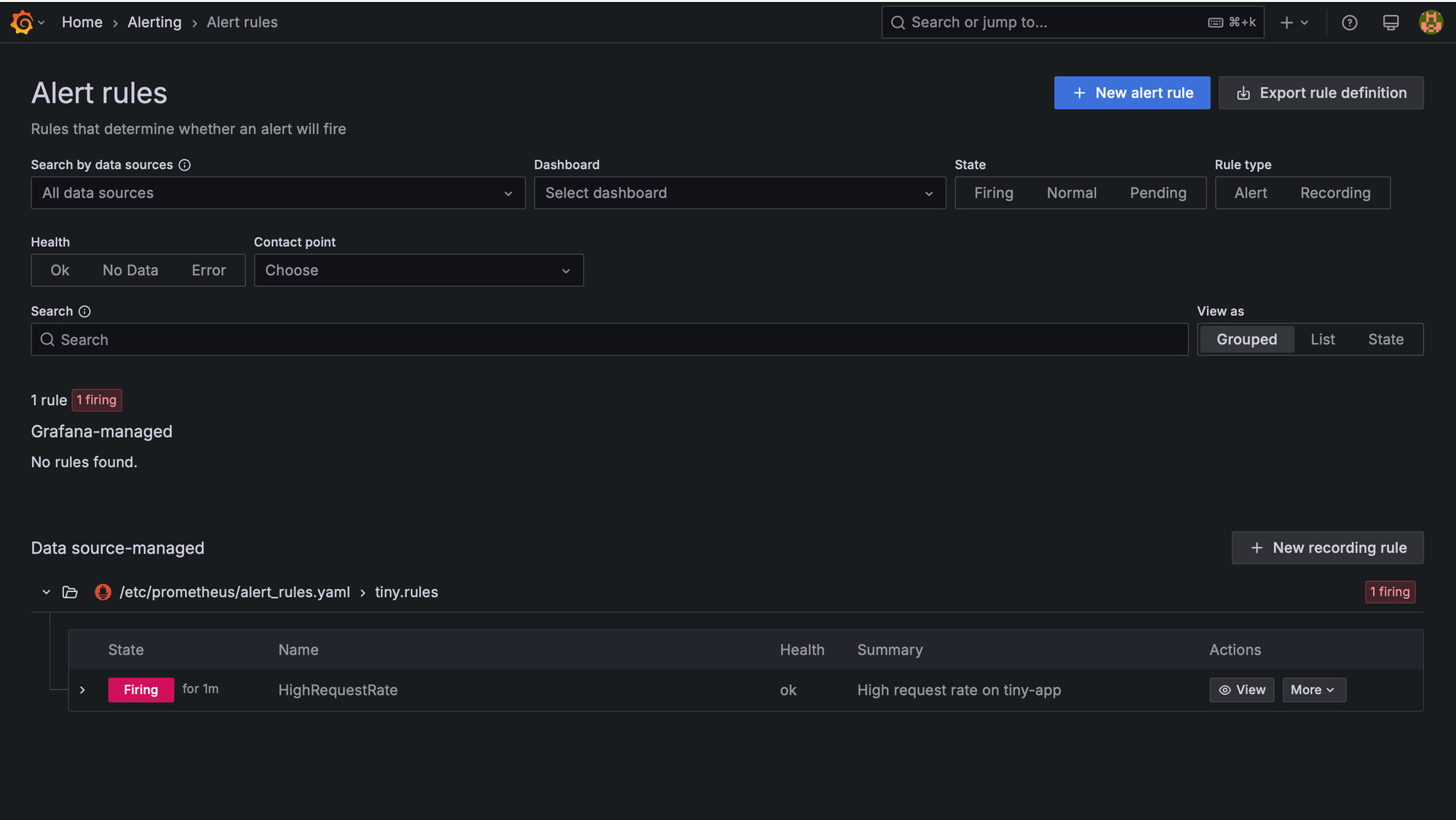

Grafana also lists it under Alerting → Alert rules. (Feel free to wire Alertmanager to Slack/email later.)

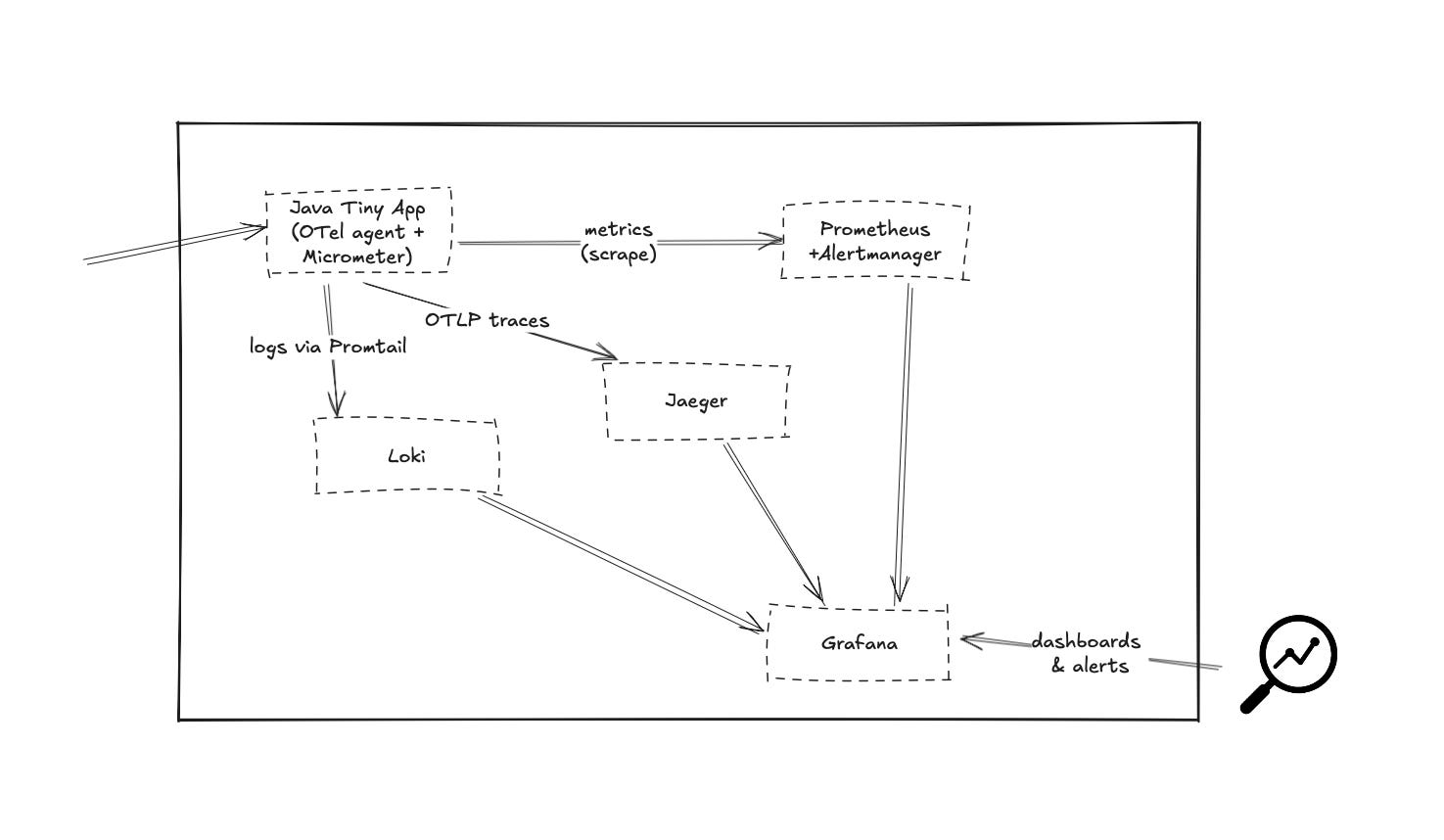

7 – Under the Hood: What Just Happened?

OpenTelemetry Java agent auto‑instrumented Javalin, captured HTTP spans, and exported via OTLP → Jaeger.
Micrometer registers /metrics, Prometheus pulls every 15 s.
Promtail tails container stdout, ships to Loki.
Grafana unifies everything, and Prometheus Alertmanager paged us.

8 – Where to Go from Here

9 – Wrap‑Up

You just:

Built a tiny Java service
Containerized it with auto‑instrumentation
Launched Prometheus + Alertmanager, Loki + Promtail, Jaeger, and Grafana in one shot
Watched live metrics, logs, traces, and an alert—all open source, no credit card, ~200 lines of YAML.

Pat yourself on the back 👏. From here, you can iterate: add more apps, define SLOs, integrate CI/CD. Remember: observability isn’t a destination; it’s a practice. But now you’ve got a solid starter toolbox—happy hacking!

Source code: https://github.com/ObservabilityHow/tiny-observability-stack

Observability.

What is Observability? – Metrics, Logs, and Traces Demystified

Discussion about this post

Ready for more?

Observability.

Building Your First Observability Stack with Open‑Source Tools

Why this post?

What is Observability? – Metrics, Logs, and Traces Demystified

Prerequisites

1 – Scaffold a Tiny Java Service

1.1 pom.xml

1.2 TinyApp.java

1.3 Dockerfile

2 – Prometheus (+ Alertmanager) Config

2.1 prometheus.yaml

2.2 alert-rules.yaml

2.3 alertmanager.yaml

3 – Loki & Promtail Config

3.1 loki.yaml

3.2 promtail.yaml

4 – Docker Compose Config

5 – Fire It Up!

6 – Exploring the Data

6.1 Grafana Login

6.2 Quick Dashboards

6.3 Alert in Action

7 – Under the Hood: What Just Happened?

8 – Where to Go from Here

9 – Wrap‑Up

Discussion about this post

Ready for more?

1.1 `pom.xml`

1.2 `TinyApp.java`

1.3 `Dockerfile`

2 – Prometheus (+ Alertmanager) Config

2.1 `prometheus.yaml`

2.2 `alert-rules.yaml`

2.3 `alertmanager.yaml`

3.1 `loki.yaml`

3.2 `promtail.yaml`

6 – Exploring the Data

7 – Under the Hood: What Just Happened?

8 – Where to Go from Here

9 – Wrap‑Up
